All About The 8.1L Vortec: Chevy's Final Big Block Engine

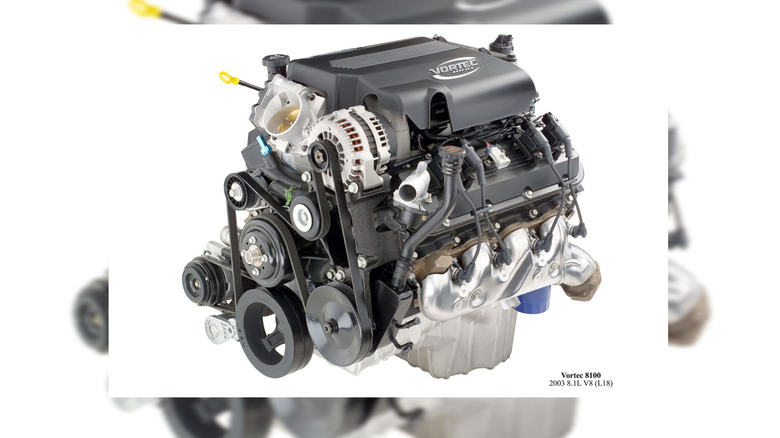

Chevrolet's Vortec series of engines is hugely popular. Designed with trucks in mind, Vortec engines prioritize low-end torque and durability over high compression ratios and high horsepower, unlike their LS siblings. One of the most popular small-block V8s is the Vortec 5300, which is often discussed for its horsepower and torque output. Known as one of the most durable motors, it is popular among the hotrod community thanks to its compact dimensions, good power, and availability. Unlike its famous younger brother, the Vortec 8100, codenamed L18, the big block V8 takes things to the max. At 496 cubic inches (8100 cc / 8.1 liters), it is a true behemoth and one of the very last big-block motors GM ever produced.

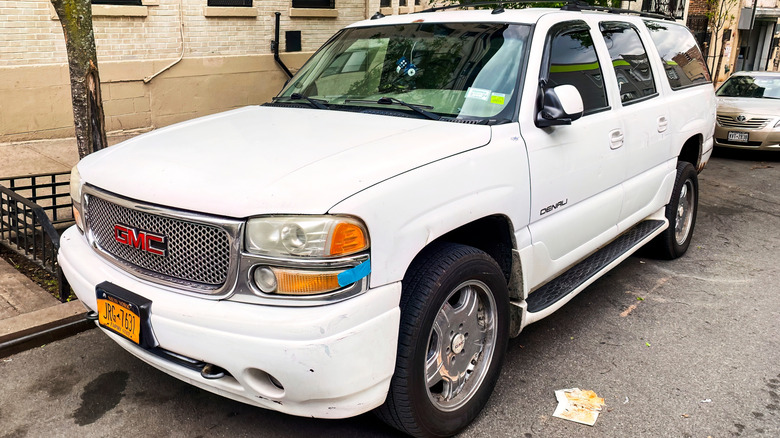

Based on the 454, which dates back to the late '60s, the 8100 was a gasoline alternative to expensive Duramax diesel engines. Being such a large motor, it only came with GM's trucks and SUVs from the factory, think Suburban/Yukon XL, Sierra/Silverado 2500 HD, 3500 HD, and more. Beyond trucks, the Vortec 8100 found its way into industrial machines, motorhomes, and RVs, while at sea, modified variants like the MerCruiser 496 MAG HO and Volvo Penta 8.1 GXi powered boats. The 8100 was even tested for intense stress, like the Marine Dock test, where the engine runs at full throttle for 55 minutes and then idles for five minutes, 300 times.

The 8100 traces its roots back to the 454 big block that powered cars like the Chevelle, Corvette, and more. It was later revived in the Chevrolet 454 SS pickup truck based on the C1500. From there, the 7.4-liter V8's displacement was increased to 8.1 liters by stretching the stroke from 4.00 inches to 4.37 inches, in response to Dodge and Ford's V10 offerings.

Weighing around 761 pounds, it was a true heavyweight, which explains why it was reserved for heavy-duty vehicles and not high-performance GM cars. Power output varied depending on the application, but the most common version produced about 340 horsepower and 450 lb-ft of torque. While not remarkable by modern standards, it outperformed smaller Vortecs and rivaled Duramax diesel options for hauling. Some marine versions were tuned as high as 550 horsepower and 690 lb-ft of torque. The 8100 also carried several advancements from GM's Gen III small blocks, including factory fuel injection, coil-on-plug ignition, advanced engine diagnostics, and larger cylinder head ports similar to the cathedral ports on the LS1.

Despite its strengths, the 8100 never became popular in the swap community. Its rarity played a role, but the bigger problem was its sheer size and weight. In lightweight sports cars or sedans, the heavy cast-iron block upset weight balance completely, making for a nose-heavy car with poor driving dynamics, assuming it even fit at all. Chevrolet ultimately discontinued the Vortec 8100 in 2009. Its terrible fuel economy and heavy emissions made it no longer viable. Newer engine lineups, such as the 6.2-liter EcoTec3, were lighter, more efficient, and offered similar or better performance, while Duramax diesel grew to be more powerful and refined with time, making the 8100 obsolete. Its end marked the final chapter of GM's big-block era.
