EVGA NVIDIA GeForce GTX 960 SuperSC Review with Benchmarks

Chris Burns - Jan 22, 2015, 8:01 am CDT
1
EVGA NVIDIA GeForce GTX 960 SuperSC Review with Benchmarks

This week NVIDIA brings heat with the GTX 960 graphics card family. The unit we’re having a peek at today is an EVGA GeForce GTX 960 SuperSC, working with clock speeds of 1279MHz Base and 1342MHz Boost, a brand new set of cooling features with ACX 2.0+ Cooling, and the ability to output video to 5 displays at once. This isn’t a top tier card, it’s meant to attack the middle – extraordinary processing power for a rather inexpensive price. That’s the key to hitting the graphics card market from all angles.

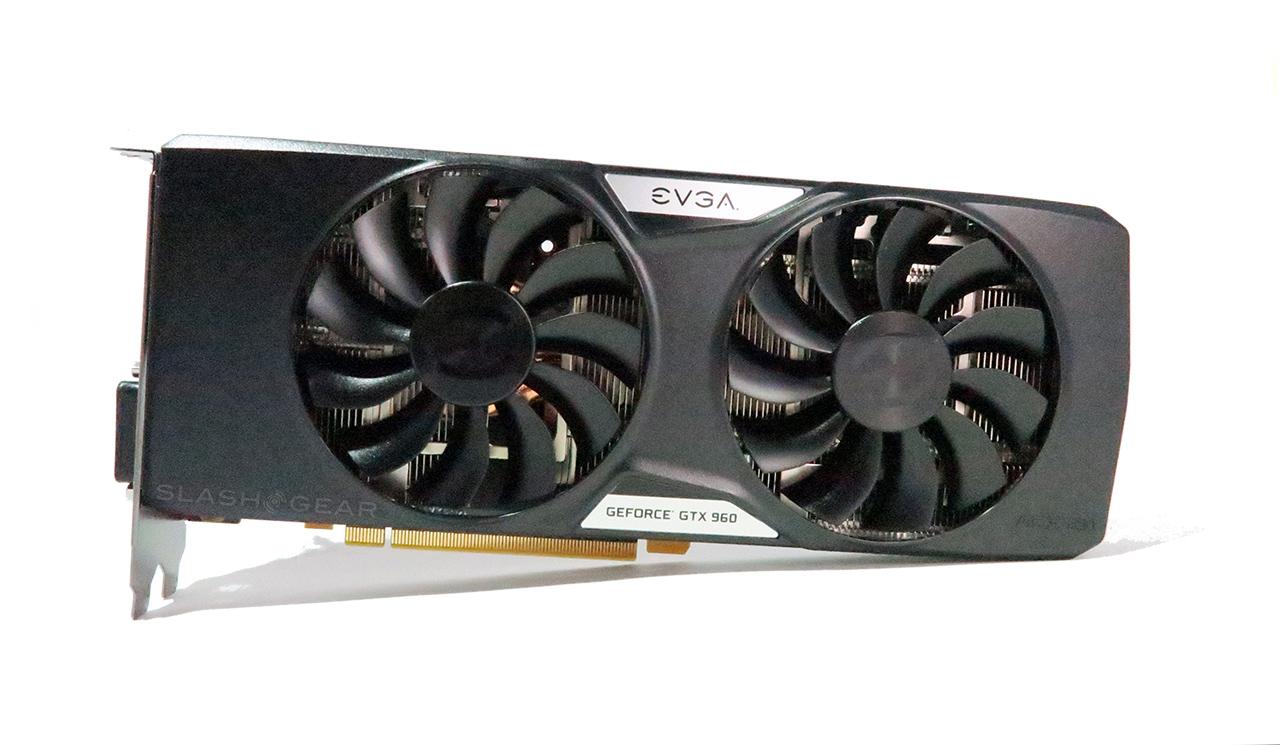

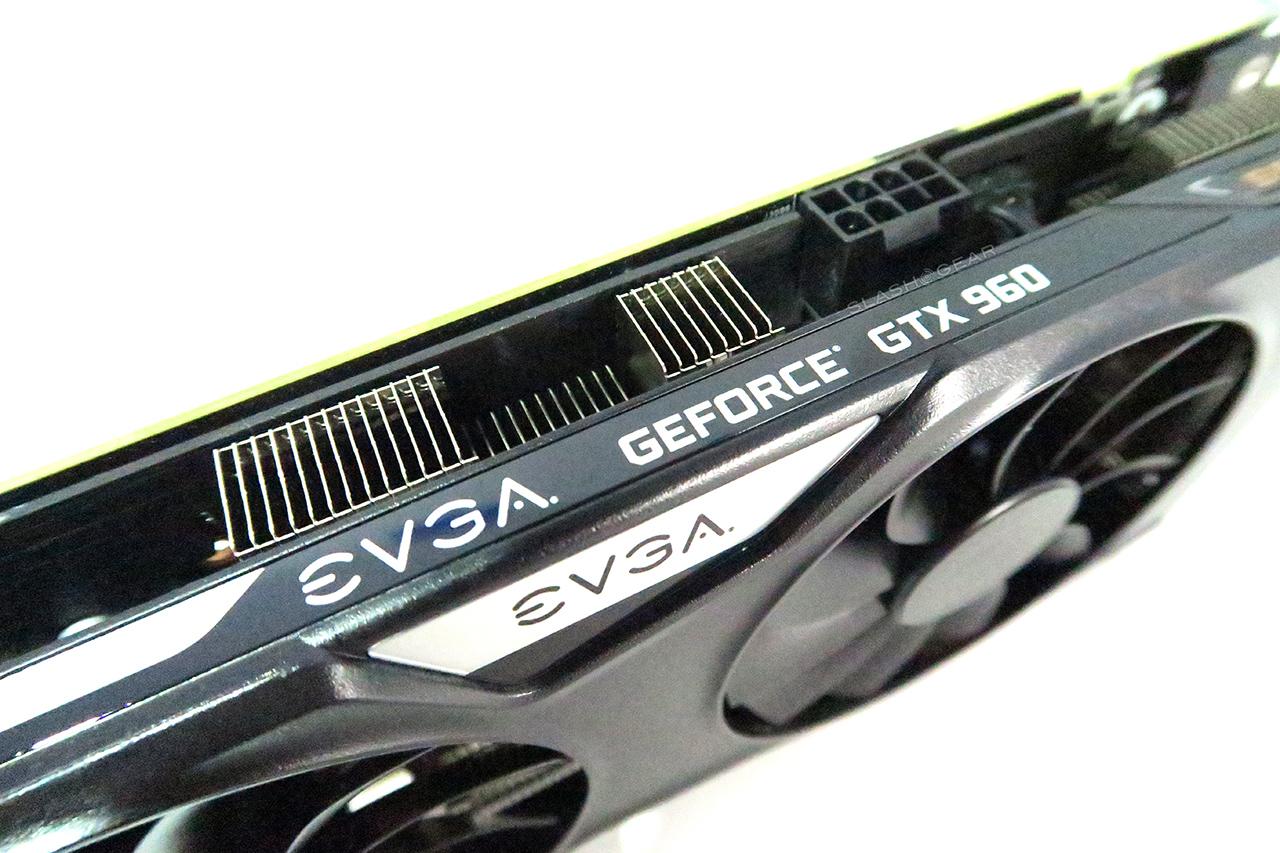

This EVGA card works with a 6+2 Power Phase Design and standard 8pin PCI-E Power Input, and as you’ll see here – right under these lovely E-branded fans – there’s a new Straight Heat Pipe (SHP) cooling system inside as well. A set of three heat pipes at 8mm each are connected straight to the plate, allowing this system to operate at 5-degrees C cooler than it would without SHP.

IMG_0903

Below you’ll see a video from EVGA showing some cross-sections of the parts that make up their unique vision for the GTX 960 system. Inside the fans and everything.

Full EVGA GeForce GTX 960 SuperSC Specs run as follows:
• 1024 CUDA Cores
• Base Clock: 1279 MHz
• Boost Clock: 1342 MHz
• Bus: PCI-E 3.01
• 2-way SLI Ready
• Memory Detail: 2048 MB GDDR5
• Memory Bit Width: 128 Bit
• Memory Clock: 7010 MHz
• Memory Speed: 0.28 ns
• Memory Bandwidth: 112.16 GB/s

buttend

Benchmarks run at 1920 x 1080, 16xAF, and either 4xMSAA, 2xSSAA, or SSAA – marked accordingly:

Tomb Raider (2013) DX11 Ultimate Settings, 2xSSAA: 38 FPS, 36.1 FPS, 32 FPS
Call of Duty: Ghosts DX11 Max Settings, 2xSSAA: 55.3 FPS, 56 FPS, 54 FPS
Metro: Last Light DX11 Very High Settings, SSAA: 49.5 FPS, 51.3 FPS, 50 FPS
Crysis 3 DX11 Very High, 4xMSAA: 25 FPS, 31 FPS, 24 FPS

[TESTS CONTINUING]

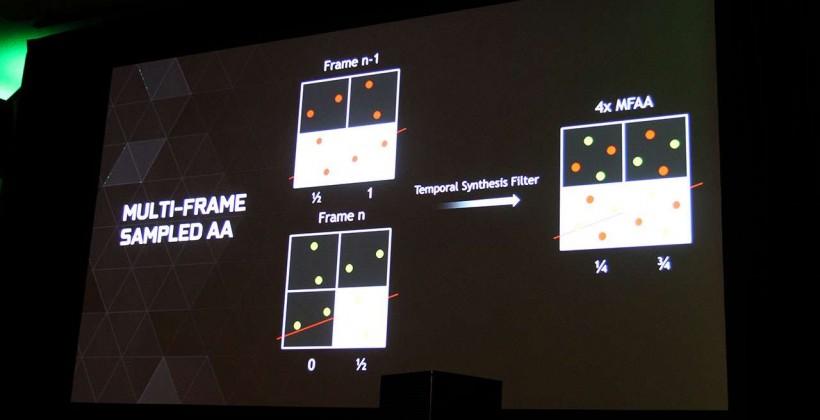

With this card, you’ll be able to roll with MFAA – remember that’s 4x MXAA quality at half the cost. That means another tick in the box for this relatively inexpensive card’s “does it more than well enough for the price” checklist.

MXAA-820x420

You’ll have the ability to work with HDMI 2.0 and H.265 encode/decode. You’ll have lower temperature and power consumption than the previous generation. Both the GTX 760 (which was originally $249), and the GTX 660 (originally $229) both had higher average temps and power consumption than this current-gen model.

Now you’re going to be kicking out far more processing power with far less power consumed as you do so.

Besides the EVGA model we’re taking a look at above, several manufacturers will be bringing units to the market very soon.

The GeForce GTX 960 will be released for around $199 USD MSRP. EVGA, Gigabyte, and Zotac are bringing on OC models for $199 on launch day, while the EVGA GeForce GTX 960 SSC we’ve got here will cost $209 USD. There’ll also be an ASUS STRIX-GTX960-DC2OC that we do not yet know the price of – but chances are it’ll be right up around $209 as well.

With the release of this graphics card, NVIDIA’s offered line of GeForce GTX graphics cards include the following:
• GeForce GTX TITAN Z
• GeForce GTX 980
• GeForce GTX 970
• GeForce GTX 960
• GeForce GTX 750 Ti
• GeForce GTX 750

With the NVIDIA GeForce GTX 960 – especially with this EVGA GTX 960 SuperSC model – we’re once again in a sort of “sweet spot” for gamers aiming to play long-term, all-in games. RPGs and MMORPGs are going to benefit the most from this cost/value proposition.

If you want to drop many hundreds of dollars to get the best of the best, you’re going to want to jump there closer to the 980 and the TITAN collection. There you’ll find the beasts you’re looking for.

The EVGA GTX 960 SuperSC is a home run for the average gamer aiming to get more than what they paid for out of a single-unit solution. Grab a couple and run up the GPU power at will.
