Signs Your Xbox Series X's HDMI Ports Are Failing, What A Fix May Cost, And Why DIY Is A Bad Idea

There are a variety of common issues you may encounter with an Xbox Series X/S console, including power failures, disc drive problems, and the notorious stick drift that can affect Xbox One and Series X/S controllers. HDMI port repairs also tend to be one of the most common board-level repairs for the Xbox Series X/S and PlayStation 5 consoles, according to Repair Labz. Reboot Hub also lists HDMI port damage as one of the most common failures and repairs it sees on Xbox consoles.

Modern consoles have moved away from through-hole components, and instead rely on surface mount PCB design. This means that the HDMI ports tend to have fragile pins and solder pads, and any of them can be a single point of failure, rendering the entire HDMI port dead. It also makes board-level repairs more complicated. Surface mount soldering requires a much higher temperature, and it becomes easy to damage the PCB or inadvertently bridge adjacent pads or conductive parts, if you're not precise –- which is why DIY isn't a great idea unless you're experienced in tech repair, have the proper tools, and know exactly what you're doing.

There's a number of causes for a failing HDMI port: a cracked solder joint or pad from wear and tear or excessive force, forcing a damaged connector into the port, or a bad retimer IC, just to name a few. These issues can manifest in many ways, such as a black screen or the TV not detecting an HDMI signal from the console, but some symptoms can also overlap with faulty HDMI cables.

What symptoms you're seeing tend to be determined by how far along the failure is mechanically or electrically, as well as the exact nature of the failure. Flickering, intermittent signal loss, pixelation, or resolution issues can all be signs of a bad HDMI port that could be the result of a damaged solder pad, or a loose port that can't retain the cable connector. If the console powers on, but you get no video, this could be due to damaged pins or a failing solder joint.

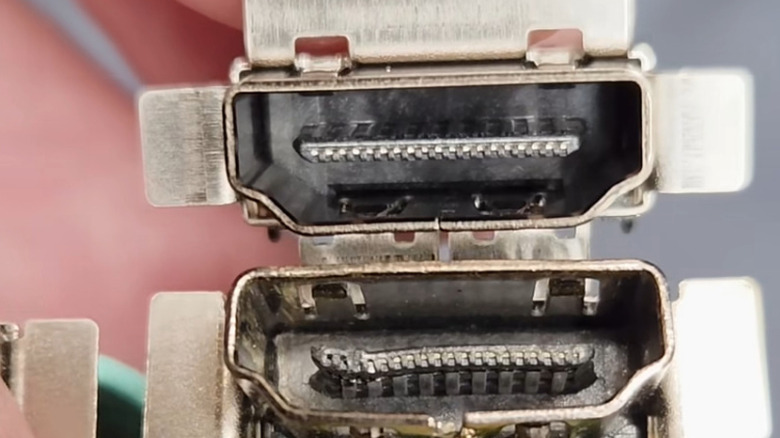

Physical damage to the port or damage from an electrical short from liquid being exposed to the port may result in a black screen, or an error message related to HDMI input –- or could cause the console not to boot at all, depending on the severity of the damage. Other issues include the port lifting from the surface mounted pads on the PCB, or the internal retention tabs breaking, which could cause some of the above-mentioned issues, and also means the HDMI cable won't stay in the port. These are all signs that the HDMI port on the Xbox Series X/S is failing.

When troubleshooting HDMI issues with a console, it's always best to start with the simplest possible solution. That would be to make sure the HDMI connectors are seated firmly, and if so, try another cable that is known to work; this will help determine if the HDMI cable needs to be replaced. Also, try hooking the console up to another display to ensure there's nothing wrong with the HDMI ports on your TV and to eliminate possible handshake instability. Assuming that's been done, and you're still experiencing problems, it's safe to say there's something wrong with the HDMI port on the console.

Repair costs can vary, and the single biggest variable affecting cost is whether or not the console is still under warranty. To check the status of the warranty and get your Xbox serviced, you can follow the instructions on Microsoft's Xbox help page. In-warranty repairs can also be done at an authorized service provider, such as the Asurion-owned uBreakiFix chain of repair shops, which Microsoft began partnering with in 2025 to offer in-person repairs on Xbox consoles. uBreakiFix by Asurion is Microsoft's first Xbox Authorized Service Provider, and has over 700 stores across the US, making it the biggest repair partner Microsoft has in the US.

I spoke with a technician at a local uBreakiFix location, and was told HDMI port repairs are a flat fee of $200 before sales tax. Other shops, such as Repair Labz and DVD Game Exchange (who have quite the following on social media), offer HDMI port repairs starting at $99 and $149.99, respectively, with mail-in service. Microsoft also partners with iFixit to offer OEM Xbox replacement parts, but the HDMI port isn't a DIY repair most should attempt.

This repair requires delicate micro soldering and special tools like a hot air rework station, and a soldering microscope to see the surface pads. These tools cost several times more than paying for a repair. If you botch the repair, you're likely going to make the job more complicated for a professional, which means you will incur more costs than you need to, not to mention you risk damaging the console further. It's best to leave board-level console repairs to a professional, but Microsoft does offer DIY parts for Xbox controllers, and those are much more DIY-friendly.
