What Does Outboard Mean On A Boat Engine?

Next time you find yourself out on the water or near a marina, take a look at the types of boat engines around you. You're likely to see a good mix of inboard and outboard engines. Even if you don't recognize them by name, you'll definitely know how they look — and be able to tell what distinguishes them.

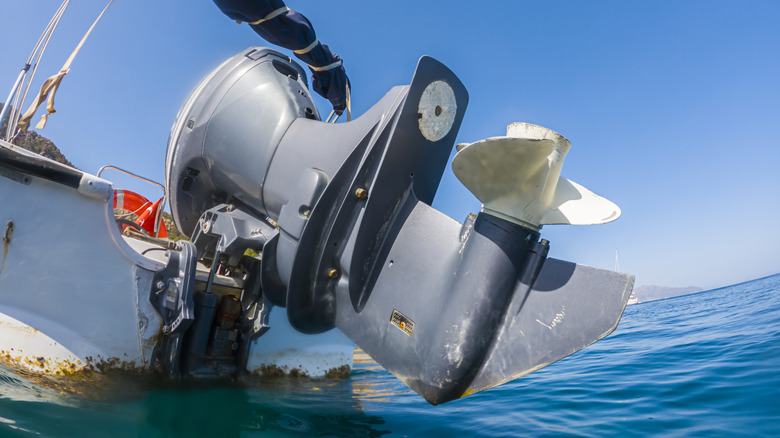

An outboard engine combines both its power source and its drive mechanism into a single unit. It's attached to the back of the boat, instead of being a fixed part. That's what an inboard engine is: It sits inside the hull and transfers its power to an external propulsion system.

Outboard and inboard arrangements take up different amounts of space on the boat, but they also affect how a boat changes direction and how its propulsion system is configured. Outboard motors are popular on smaller boats because they're relatively compact, lighter, and typically more affordable. Inboard systems, in contrast, are more common on larger craft that need more power and have enough room for larger engines.

Steering is also very different with an outboard engine compared to an inboard one. An outboard motor is designed to pivot, and the operator uses that motion to change the boat's direction. If you want to move this way or that, you move the engine accordingly. It's one of the most obvious differences between marine and automotive engines.)

An inboard engine is different. Its power unit is fixed inside the hull. So, instead of turning the engine to steer, the boat uses a rudder to change direction. As water flows past the rudder's vertical blade, it creates pressure that pushes the vessel in one direction or another.

The choice between inboard and outboard engines depends on the boat's size, weight, and what it's intended for. Outboard engines are more common on smaller recreational craft, while inboard engines suit larger vessels that can accommodate a larger power unit and the necessary transmission equipment. Both are available in gas-powered versions as well as
