What Do The Numbers Mean On Helipads & Why Are They Important For Helicopters?

Most of us are familiar with the giant H that's painted on many helicopter landing pads. Apart from the obvious "H" association with helicopters, the "H" is actually there for an important reason that indicates more than just a helicopter's landing area. Helipads don't just have the "H", though; they often display numbers to give the pilots crucial information.

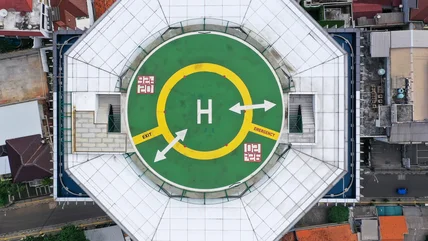

For instance, on many rooftop pads — especially those on hospitals, corporate buildings, and other high-rise structures — you'll often see one or two large numbers painted near the landing area. These tell the pilot the maximum weight and maximum rotor diameter the pad is designed for, according to an Federal Aviation Administration (FAA) Advisory Circular. Note, however, that the FAA scheme is entirely voluntary, and that the actual layout — if numbers are present, which isn't always the case – may vary.

If we go by FAA guidelines, the number four painted in a rectangular box tells the pilot that the weight limit is 4,000 pounds. Below this may be an alphanumeric code — like D40 — that shows the pilot the largest rotor diameter in feet that the pad can handle. Both will dictate what choppers can land safely, helping pilots avoid unfortunate incidents. Some helipads also display a unique identifier, although not every helipad has an official, registered identifier.

Beyond weight and size indicators, the FAA Advisory Circular also details other markings meant to make helicopter operations safer and how helipads should display them. One of the most common is the Touchdown and Liftoff Area (TLOF), defined by a continuous 12-inch boundary line marked in white or by reflective markers that tell the pilot where it's safe to land. Another boundary is the Final Approach and Takeoff Area, which outlines the safe approach and departure zone. The FAA recommends helipads mark these with a 12-inch dashed line.

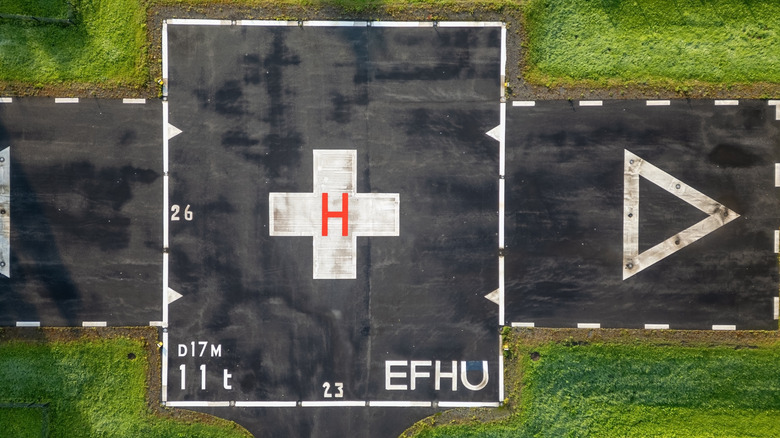

Hospital helipads often feature variations on the theme. For instance, they may also incorporate a cross into the paintwork, or paint the ubiquitous "H" in red. A few pads also include directional arrows that indicate preferred approach and departure routes. The FAA recommends that these be 10 feet long. Arrows pointing toward the center of the TLOF indicate the approach direction, and those pointing away from it indicate the departure direction.

While helicopters are renowned for being able to land just about anywhere, the markings on a helipad can make the job safer and easier. However, because these markings are FAA recommendations rather than strict requirements, many private or older pads use simplified or non-standard layouts. So, the exact combination of numbers and symbols can vary widely from one site to another.
