Ultra’s heat-pipes salve your CPU

Chris Davies - Feb 1, 2007
Ultra’s heat-pipes salve your CPU

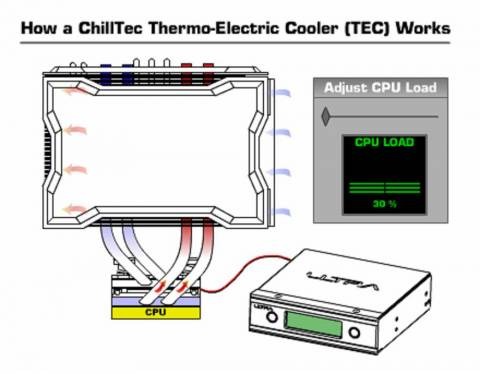

Sweet Betty Trouserpress, what's this behemoth?! It looks like the kind of jet engine that propelled poor Richard Hammond head-first into some grass, but in fact it's a good old-fashioned CPU cooler. It uses heat-pipes to funnel heat away from the processor via a fan-cooled radiator, with a front-panel mounted control unit that monitors the core's temperature and cycles the fan to avoid condensation build-up.

Check out the full specs after the cut, as well as some extra photos. MRSP is $149.99

ChillTec CPU cooler

Socket Types: Intel Socket 775, AMD Socket AM2 / 754 / 939 / 940
Cooler Dimensions: 128 x 104 x 147

Thermoelectric Chip: 40 x 40 / 12V DC
Total Power Dissipation:
0% Load = 5 W
50% Load = 28 W
100% Load = 50 W
Heatsink Material: 4 Heat Pipes, Aluminum Fins, Copper Base
Heatsink Dimensions: 90 x 90 x 160 mm
Fan Dimensions: 92 x 92 x 25 mm
Fan Voltage Rating: 12V DC
Fan Speed and Noise Levels:
Low 2000rpm / 20 dB(A)
Medium 2400 rpm / 24 dB(A)
High 2800 rpm / 28 dB(A)
Thermal Resistance: 0.12-0.15(ºC/W)
Weight: 985g (With Fan)
Temperature Monitor Range: 0ºF~99ºF / 32ºF ~ 210.2ºF
TEC Temperature Response Time to Control Unit: < 1 Second
Controller Dimensions: 150 x 147 x 43 mm
Controller Weight: 508 g

ChillTec CPU cooling


Ultra ChillTec Thermo Electric CPU Cooler [Thanks to Ted for the tip]
