Microsoft loves money, your money to be exact. When you buy something like their Xbox 360, they want you to use their special proprietary hardware. Take the wireless adapter, you’d think any old adapter would do the trick, unfortunately you have to buy the $100 one from Microsoft. (Or at least that’s what they want you to think, but that’s a story for a different day). Another great example is the $50 HDMI cable with the audio adapter, that’s way too expensive.
If you have one of the newer Xbox 360 Premium consoles, you likely have yourself a nice HDMI port. Unfortunately, due to the design of the A/V cable, you can’t have both an HDMI cable and the A/V cable (which carries your audio) plugged in at the same time. The Microsoft solution is to pay $50 for a special cable.

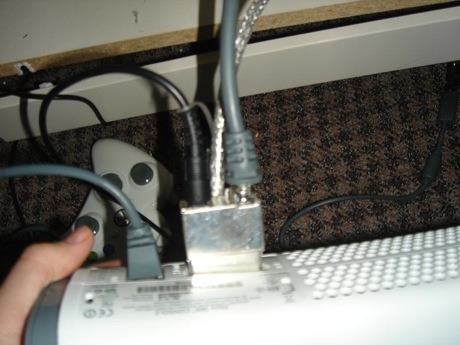

The hacker solution is to remove the plastic casing around the connector for the A/V cable. This gives you enough room to plug in an el cheap-o HDMI cable. Take that Microsoft!
How To Stick It To Microsoft On Their $50 HDMI Cable [via gearfuse]
13 Responses to “Hack – Use a cheap HDMI cable on your Xbox 360 Premium”
Wyatt Constantine October 3, 2007
I thought this was a really informative article. I didn’t realize the trouble microsoft would go through to get your money.
+1xp October 3, 2007
Between releasing a video game console that can hardly stay out of the repair shop, and doing sneaky things like this HDMI trick… it’ll be amazing if MS manages to stay on top in this business.
Cheap tricks… they aren’t sustainable
-2Yert October 3, 2007
Okay, thats nice and all, but at least Microsoft provides all these cables with the Elite version, and High Definition cables with all versions…
I think the cable cost $50 because they don’t want you to buy it… they probably want you to buy the Elite in the first place… or use a decent stereo system…
-4Nadoka October 19, 2007
This was also what I did to my new HDMI Premium.
There is however, one side effect. If u have both HDMI and the HD Cable plugged in, the console will reset when you switch video inputs on your TV or if u turn off your TV and back on. At least it did it on my Sony LCD. This doesn’t happen if I remove the HD cable, so I don’t think it’s my TV. Nor does this happen to my Wii, but that just runs off component cables. It also doesn’t do anything strange to my HDMI PC, so I’m pretty positive it’s Microsoft’s doing.
I was tolerating this up until during an intense Halo3 game where I accidentally sat on my TV’s remote and it switched video’s. :(
The fix for this is to open up the HD cable dongle and remove a black shorted wire inside. It’s the only one that loops back on itself at the connector. Anyone willing to do this will see right away what I’m talking about when the metal casing is ripped apart. Do so at your own risk, of course.
I took the extra step of desoldering all the RCA wires off. So I ended up with just an “Optical Dongle”. :)
I win! Microsoft, you lose!
+3Joe October 25, 2007
Thank you Nadoka, I tried that fix and it worked great!
NeutralJimmy November 26, 2007
I just ran HDMI (which can hold the 5.1 signal) into my DLP and ran the Optic out into my receiver, seems to be working fine. No out of sync audio either.
NeutralKeimei December 1, 2007
[quote comment="31560"]I just ran HDMI (which can hold the 5.1 signal) into my DLP and ran the Optic out into my receiver, seems to be working fine. No out of sync audio either.[/quote]
Check your receiver, I bet it is going into Dolby Pro Logic 5.1 not Doldy Digital 5.1. Dolby Digital is way better than the old Pro Logic stereo decoding system.
NeutralLater
pianobryguy January 2, 2008
Nadoka, just wondering… I’ve done the casing trick (before finding this website, so I thought it was my idea. heh) But my question is, if I go ahead with the removal of that black shorted wire will I still be able to get analog sound through the RCAs? I don’t have the ability to utilize the optical audio at this point but still depend on HDMI for 1080p. I would love to not have the system reset when I change inputs. Plus it would allow me to use the TV’s sleep timer to power down the system when I fall asleep to a movie. (without it waking right back up again) Thanks
Neutralthadwhit February 19, 2008
I did this hack thanks. I was wondering if I cut off the component cables to neaten it up if that will ruin the optical?
NeutralCurt April 9, 2008
[quote comment="29915"]This was also what I did to my new HDMI Premium.
There is however, one side effect. If u have both HDMI and the HD Cable plugged in, the console will reset when you switch video inputs on your TV or if u turn off your TV and back on. At least it did it on my Sony LCD. This doesn’t happen if I remove the HD cable, so I don’t think it’s my TV. Nor does this happen to my Wii, but that just runs off component cables. It also doesn’t do anything strange to my HDMI PC, so I’m pretty positive it’s Microsoft’s doing.
I was tolerating this up until during an intense Halo3 game where I accidentally sat on my TV’s remote and it switched video’s. :(
The fix for this is to open up the HD cable dongle and remove a black shorted wire inside. It’s the only one that loops back on itself at the connector. Anyone willing to do this will see right away what I’m talking about when the metal casing is ripped apart. Do so at your own risk, of course.
I took the extra step of desoldering all the RCA wires off. So I ended up with just an “Optical Dongle”. :)
I win! Microsoft, you lose![/quote]
Thank you so much Nadoka for the tip regarding the little black wire! I too now have an optical dongle thanks to you and now my 360 doesnt reboot everytime i switch inputs! Very nice tip. =)
Neutralomid May 16, 2008
if im remove plastic , button in a av cable to change between TV and HDTV is Work or after that is other not work?
Neutralbill August 3, 2008
yes it still works, its just a little black switch afterwards.
NeutralCargo October 14, 2008
Thanks for the info, my problem was the tv only had dvi(HD picture only) connected it through hdmi to dvi converter so had to put sound through components/optical to my amp. However I never got and problems with the 360 reseting when changing source on tv.
NeutralDamn Microsoft but so simple to fix took me not 10 seconds but took me 4 hours to try and track down a cable(Xbox 360 av to hdmi/optical) and failed.
